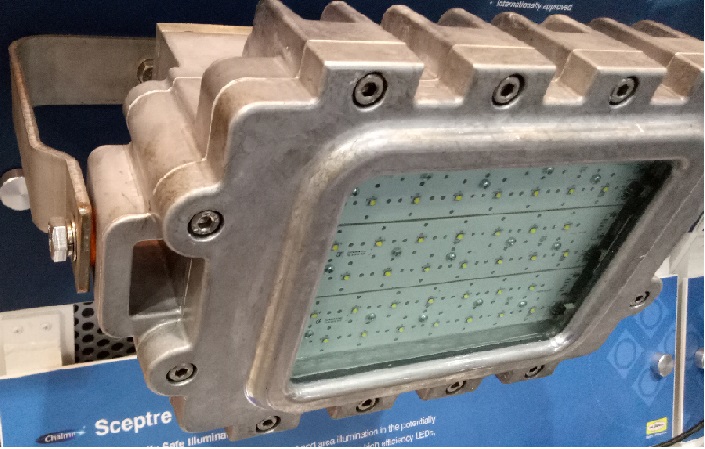

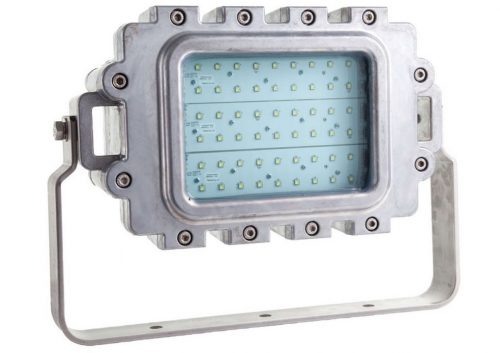

ScotiaEx Exd Flame Proof LED Flood Light for Zone-1

Download Catalog

IP Rating:   IP66

Watt/Amp:   130W

Material:   Aluminium

Principal:   Chalmit Lighting, UK

Description

Item ScotiaEx Atex & IECEx Certified “Exd” Flame Proof LED Flood Lights for Zone-1
Product ScotiaEx LED Flood Light for Zone-1
Category LED Flood Lights for Zone-1 Area
Principal Chalmit Lighting, UK
UOM Nos.
Model ScotiaEx “Exd” IP66 LED Flood Lights Zone-1
Catalog ScotiaEx Exd LED Flood Light for Zone-1 Area, Chalmit, UK 2019-20.pdf
Part No SCOD/12L
IP Rating IP66
Watt/Amp See all Cat. Nos. in  Catalogue of ScotialEx LED Flood Light
Voltage 220-254 VAC
kA Rating 6kV line to earth & 4kV line to line SPD installed
Components Complete with LED Driver within the body

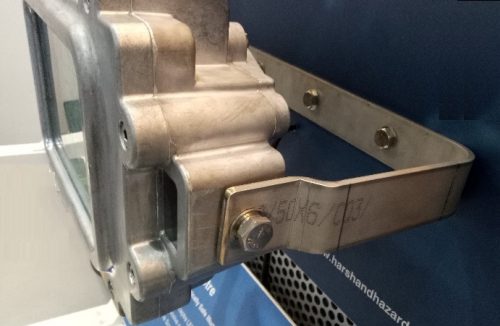

Mounting Standard U-Shaped Bracket Included Optional Pole mounting brackets available
Size 444mmx329mmx175mm
Weight 21Kgs (Approx)
Cable Entries 2xM20 & Optional M25 on request
Terminal 2.5mm Sq & 4 mm Sq
Material Aluminum
Description ScotiaEx “Exd” Flame Proof LED Flood Light for Zone-1
HS Code 9405.4090
Quantity 1
Area Hazardous Area – Zone 1



Additional information

Weight 123 kg
Dimensions 10 × 12 × 15 cm
